Here’s the contents of the file that did not work for me:
@echo off
setlocal enabledelayedexpansion
:: Initialize an array to hold COM ports
set “comPorts=”
set “index=0”
:: Query the registry for COM ports
for /f “tokens=2*” %%a in (‘reg query “HKEY_LOCAL_MACHINE\HARDWARE\DEVICEMAP\SERIALCOMM”’) do (
set “comPorts[!index!]=%%b”
set /a index+=1
)
:: Check if any COM ports were found
if !index! == 0 (
echo No COM ports found.
exit /b
)
:: Display the list of COM ports starting from 1
echo Available COM ports:
set /a loopMax=!index!-1
for /L %%i in (0,1,%loopMax%) do (
set /a displayIndex=%%i+1
echo !displayIndex! : !comPorts[%%i]!
)
:: Prompt the user to select a COM port
set /p choice="Select a COM port by number (1 to !index!): "
:: Validate the input
if “%choice%”==“” (
echo Invalid selection. No input provided.
exit /b
)
:: Convert to 0-based index for array access
set /a choice-=1
if !choice! lss 0 (
echo Invalid selection.
exit /b
)
if !choice! geq !index! (
echo Invalid selection.
exit /b
)
:: Save the chosen COM port to a variable
set “SELECTED_PORT=!comPorts[%choice%]!”
:: Display the selected COM port
echo.
echo Selected port: !SELECTED_PORT!
echo.
echo Ready to flash ESP32-S3 on !SELECTED_PORT!
echo.
echo The following files will be flashed:
echo - Bootloader: bootloader.bin at 0x0
echo - Application: APP_2024Av01.00.bin at 0x10000
echo - Partition Table: partition-table.bin at 0x8000
echo - OTA Data: ota_data_initial.bin at 0xe000
echo - SPIFFS: SPIFFS_2024Av01.00.bin at 0x910000
echo.
set /p CONTINUE=Press Enter to continue or Ctrl+C to cancel…
echo.
echo Flashing ESP32-S3…
echo.
esptool.exe -p !SELECTED_PORT! -b 460800 --before default-reset --after hard-reset --chip esp32s3 write-flash --flash-mode dio --flash-freq 80m --flash-size 16MB 0x0 bootloader.bin 0x10000 APP_2024Av01.00.bin 0x8000 partition-table.bin 0xe000 ota_data_initial.bin 0x910000 SPIFFS_2024Av01.00.bin
if %ERRORLEVEL% NEQ 0 (
echo.
echo ERROR: Flashing failed with error code %ERRORLEVEL%
pause
exit /b %ERRORLEVEL%
) else (
echo.
echo Flashing completed successfully!
pause
)
endlocal

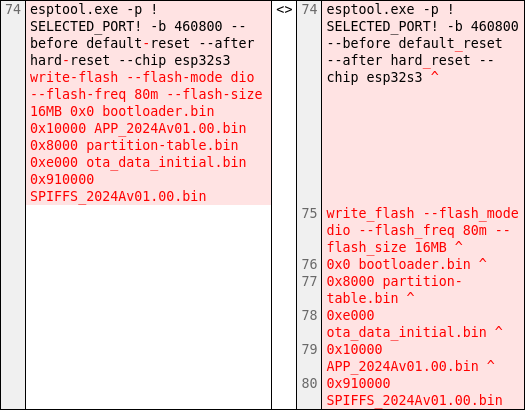

Here is the version of the file that did work for me:
@echo off
setlocal enabledelayedexpansion
:: Initialize an array to hold COM ports
set “comPorts=”
set “index=0”
:: Query the registry for COM ports
for /f “tokens=2*” %%a in (‘reg query “HKEY_LOCAL_MACHINE\HARDWARE\DEVICEMAP\SERIALCOMM”’) do (
set “comPorts[!index!]=%%b”
set /a index+=1
)
:: Check if any COM ports were found
if !index! == 0 (
echo No COM ports found.
exit /b
)
:: Display the list of COM ports starting from 1
echo Available COM ports:
set /a loopMax=!index!-1
for /L %%i in (0,1,%loopMax%) do (
set /a displayIndex=%%i+1
echo !displayIndex! : !comPorts[%%i]!
)
:: Prompt the user to select a COM port
set /p choice="Select a COM port by number (1 to !index!): "
:: Validate the input
if “%choice%”==“” (
echo Invalid selection. No input provided.
exit /b
)
:: Convert to 0-based index for array access
set /a choice-=1
if !choice! lss 0 (
echo Invalid selection.
exit /b
)
if !choice! geq !index! (
echo Invalid selection.
exit /b
)
:: Save the chosen COM port to a variable
set “SELECTED_PORT=!comPorts[%choice%]!”
:: Display the selected COM port
echo.
echo Selected port: !SELECTED_PORT!
echo.
echo Ready to flash ESP32-S3 on !SELECTED_PORT!
echo.
echo The following files will be flashed:
echo - Bootloader: bootloader.bin at 0x0
echo - Application: APP_2024Av01.00.bin at 0x10000
echo - Partition Table: partition-table.bin at 0x8000
echo - OTA Data: ota_data_initial.bin at 0xe000
echo - SPIFFS: SPIFFS_2024Av01.00.bin at 0x910000
echo.
set /p CONTINUE=Press Enter to continue or Ctrl+C to cancel…
echo.
echo Flashing ESP32-S3…
echo.
esptool.exe -p !SELECTED_PORT! -b 460800 --before default_reset --after hard_reset --chip esp32s3 ^
write_flash --flash_mode dio --flash_freq 80m --flash_size 16MB ^
0x0 bootloader.bin ^
0x8000 partition-table.bin ^
0xe000 ota_data_initial.bin ^
0x10000 APP_2024Av01.00.bin ^
0x910000 SPIFFS_2024Av01.00.bin
if %ERRORLEVEL% NEQ 0 (
echo.
echo ERROR: Flashing failed with error code %ERRORLEVEL%
pause
exit /b %ERRORLEVEL%
) else (
echo.
echo Flashing completed successfully!
pause
)
endlocal
